MJ-LED
MJING
Overview

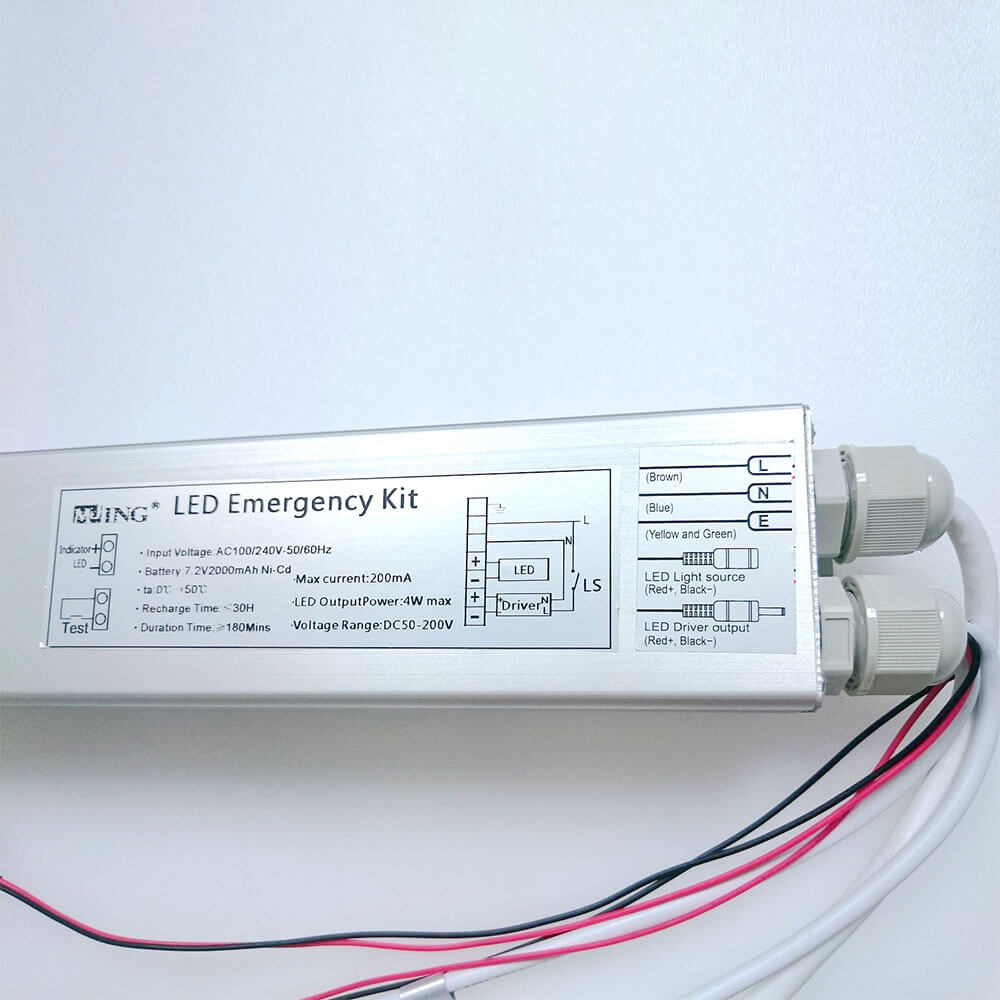

Emergency Power Unit CONVERSION KIT LED BL20A is aimed to provide an uninterrupted interior lighting with LED luminaires in case of unforeseen power switch offs.Unit consists of a driver and a rechargeable Ni-cd battery.Unit is installed inside of the LED luminaireand provides operation of the LED module during an emergency mode for at least 3 hours.Level of illumination is high enough for orientation,evacution from the continuation of the work,which cannot be immediately stopped.LED tri-color indicator showing and testing.The Ni-cd battery performance is connected to LED module.
Production Name
LED Panel emergency battery backup | |
Part No. | MJ-LED-CPAL |
Inverter No. | |
Emergency power | 5w max |
Input Voltage | 110V-265VAC,50HZ/60HZ |
Output Voltage | 50-200V 7.2V |
Output Current | self-adaptive |
Battery Pack | 12v |
Duration | 180 Minutes |
Charging Time | 24 hrs |
Brightness | 100% |
Inverter housing | Cold Rolled Steel Sheet |
Emergency conversion time | 0.1 sec |
Inverter weight (no battery) | 250g |
Aplication | MAX 100W lamp with input voltage 220V or 220~310V |
Inverter Size | 305x52x32mm |
NO. | INPUT VOLTAGE | LED RANGE VOLTAGE | EMERGENCY CONST POWER | SUPPLY POWER | MAX CURRENT | BATTERY-mAH | DURATION TIME | REACHARGING TIME | CERTIFICATION |
1E3 | AC 100-240v | DC 5-200V | 10W | 6-100W | 2A | NI-CD 12V 3.0AH | 180mins | 30H | CE, ROSH |
2E3 | AC 220-240v | DC 5-200V | 10W | 6-100W | 2A | NI-CD 12V 3.0AH | 180mins | 30H | CE, ROSH |
3E3 | AC 110V | DC 5-200V | 10W | 6-100W | 2A | NI-CD 12V 3.0AH | 180mins | 30H | CE, ROSH |
1E4 | AC 100-240v | DC 5-200V | 10W | 6-100W | 2A | NI-CD 12V 3.0AH | 180mins | 30H | CE, ROSH |
2E4 | AC 220-240v | DC 5-200V | 10W | 6-100W | 2A | NI-CD 12V 3.0AH | 180mins | 30H | CE, ROSH |
3E4 | AC 110v | DC 5-200V | 10W | 6-100W | 2A | NI-CD 12V 3.0AH | 180mins | 30H | CE, ROSH |
3. Main Products
1. Emergency Lights
2. Exit Sign Lights
3. Emergency Power Supply
4.Exhibitions & Fairs
2015 Hong Kong International Lighting Fair (Spring Edition)
19th Guangzhou International Lighting Exhibitions
115th Canton Fair 2014 Spring
Russian Exhibition 2013 Winter
5.Equipments
Intergrating Spheres: to measure brightness(luminous flux)
Wave Soldering Machine: to solder PCBs
Aging Test Board: to test products performance and select good products
Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main differences are power consumption and life span.
For same brightness, the power consumption of fluorescent lamps are 2 to 3 times more than LED lamps.
The life span of LED lamps are 10 times longer than fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 5000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes, both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6.What can be customized?
Battery
Package
Emergency time. Other requirements from cutomers. Of course, the engineers will evaluate first.
