MJ-LED
MJING
· Emergency lighting supply unit for manual testing
· For compact 100-400W LED or Electric Ballast lamps

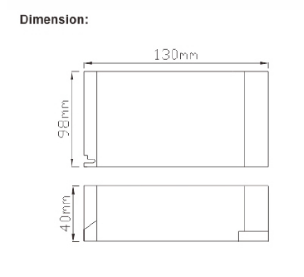

· Small dimensions (98 x 40 mm cross-section, 130 mm length)
· 5-year guarantee
· 1-3 h rated duration
· Compatible with all electronic ballasts (dimmable and non-dimmable) and LED lamps
· Can also be used in combination with conventional magnetic ballasts
· 5-pole technology: 4-pole lamp changeover and delayed power switching for the ballast
· Switchover relay with high-current contacts
· IDC (insulation displacement connection)
· Green charge status display LED
· Checking the emergency lighting function by interrupting the unswitched phase
· Deep discharge protection
· Short-circuit-proof battery connection
· Polarity reversal protection for battery
· High-temperature cells
· NiCd or Li-on and Lead-acid batteries
· C cells
· Blade terminals for simple connection
· 4-year design life
· 1-year guarantee
NO. | INPUT VOLTAGE | LED RANGE VOLTAGE | EMERGENCY CONST POWER | SUPPLY POWER | BATTERY-mAH | DURATION TIME | REACHARGING TIME | CERTIFICATION |
1E4 | AC 220-240v | DC 180-240V | 150W | 150W | Li-on/Lead-acid | 60mins | 48H | CE |
2E4 | AC 220-240v | DC 180-240V | 200W | 200W | Li-on/Lead-acid | 60mins | 48H | CE |
3E4 | AC 220-240v | DC 180-240V | 400W | 400W | Li-on/Lead-acid | 60mins | 48H | CE |
