DC 3-70V LED EMERGENCY KIT WITH 3H DURATION TIME

• Dimmable built-in LED Driver
• Emergency lighting LED Driver with automatic test function
• For LED modules with a forward voltage of 20 – 50 V
• SELV for output voltage< 60 V DC

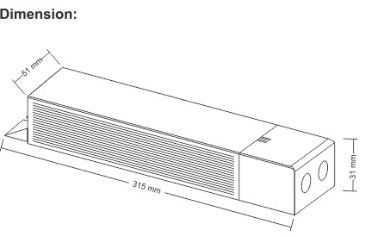

• Compact plastic casing (315 x 52 x 32 mm)
Availability:
Inquire Add to Basket

  • MJ-LED

  • MJING


Emergency lighting units

EM powerLED



Technical Details:

 1.The battery charging and discharging times:>500 times;
 2.Ambient Temperature range ta:0°C~+50°C
 3.Max.casing temperature tc:70°C
 4.Green indicator: out 50cm length
 5.Input voltage:AC100-240V,220-240V
 6.LED output voltage:3-70V
 7.Output emergency power: 4-5W constant
 8.LED light power: 6-100W
 9.Battery: 6V 3.0AH NI-MH
 10. Duration time: 180mins

emergency light battery pack

emergency light battery pack
