5/10/15/20W EM Power adjustable LED EMERGENCY PACK

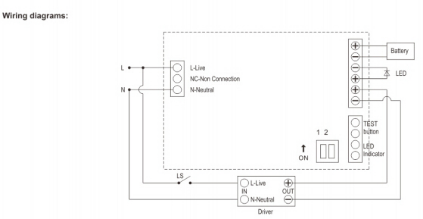

1 Install the unit according to wiring diagram, any improper wiring may lead to permanent damage to the unit;
2 Normal AC mains supply, the inverter allows the battery pack charging, trickle charge to maintain battery performance. Sudden interruption of the mains AC, then the inverter converts DC battery powered to ensure that lighting and security;

3 Inverter with multiple protection functions: charge protection, discharge protection, short circuit protection;
4 To ensure maximum performance of the built-in battery, please fully charge the unit for 24hours after first installation; To extend battery life, please contact with howell energy and make sure charge the battery at least one time every three months.

5 Don’t install top of the high temperature objects. Please ensure that the operating ambient temperature is below 50ºC, and maximum case temperature (tc) not exceeding 80ºC;
6 Do not operate this unit beyond the operating supply range;

  • MJ-LED
  • MJING

Technical Details:

 1.The battery charging and discharging times:>500 times;
 2.Ambient Temperature range ta:0°C~+50°C
 3.Max.casing temperature tc:70°C
 4.Test button and green indicator: out 30cm length
 5.DC battery wire : out 30cm

switch INPUT VOLTAGE LED RANGE VOLTAGE EMERGENCY CONST POWER SUPPLY POWER BATTERY-mAH DURATION TIME REACHARGING TIME CERTIFICATION
A AC 100-240v/220-240V DC 10-70V 5W 6-100W LI-ON 11.1V 2.8AH 360mins 30H CE, ROSH
B AC 100-240v/220-240V DC 6-80V 10W 6-100W LI-ON 11.1V 2.8AH 180mins 30H CE, ROSH
C AC 100-240v/220-240V DC 6-80V 15W 6-100W LI-ON 11.1V 2.8AH 120mins 30H CE, ROSH
D AC 100-240v/220-240V DC 6-80V 20W 6-100W LI-ON 11.1V 2.8AH 90mins 30H CE, ROSH


outdoor emergency lightingemergency light controller

emergency egress lighting
