Led Emergency Lighting Module, Wholesale Various High Quality Led Emergency Lighting Module products from Mjing

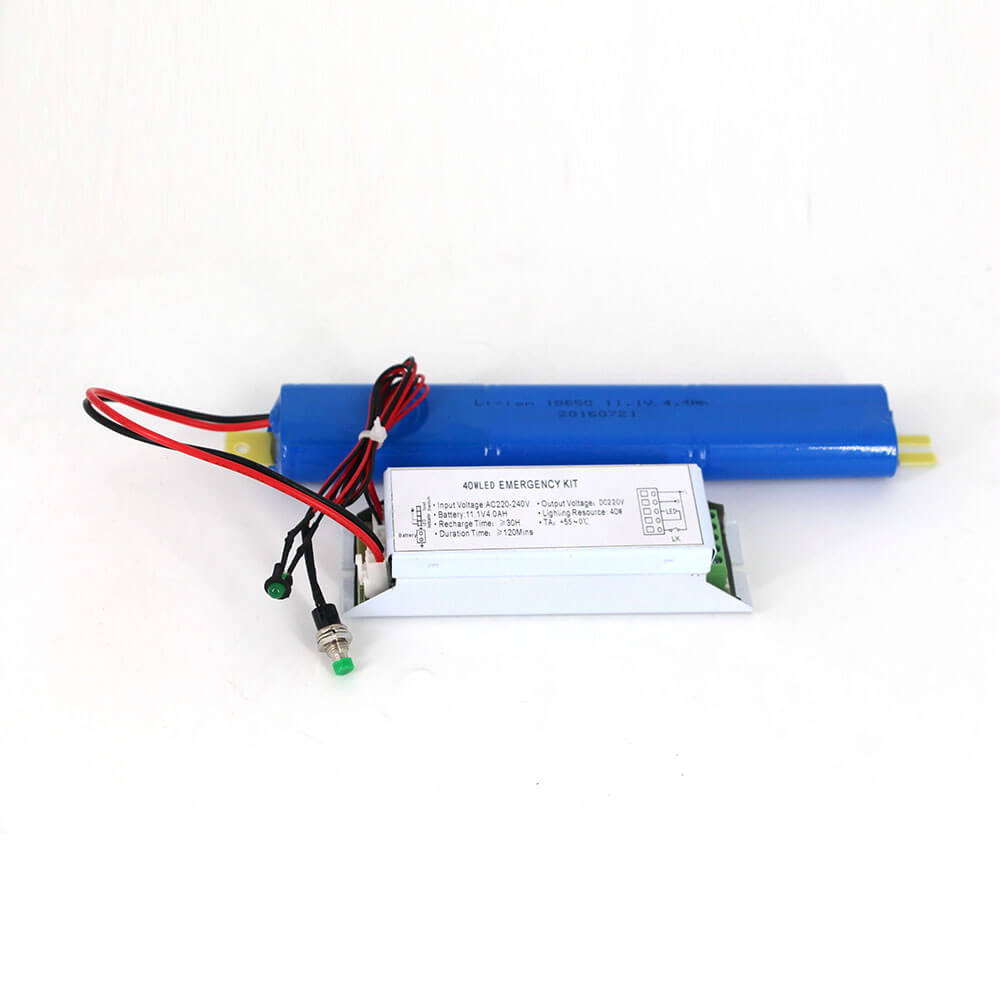

Pictures for reference only, we manufacure inverters and battery pack as per your lighting emergency requirements. Scroll down the page and contact us for suitable high temperature battery packs and inverters
Technical characteristics:
1. Supply Voltage:AC100-240V,220-240V,110V 50/60HZ
2. Output Voltage: DC 180-240V
3. LED Sources: 40W max
4. Battery: 11.1VLi-on, 12VNi-CD
5. Max load current : 3Amp
6. Emergency switch on time:<5 Second
7. Charging time: 30H
8. Ambient temperature: 0~50°C
| NO. | INPUT VOLTAGE | LED RANGE VOLTAGE | EMERGENCY CONST POWER | SUPPLY POWER | BATTERY-mAH | DURATION TIME | REACHARGING TIME | CERTIFICATION |
| 1E3 | AC 100-240v | DC 180-240V | 10W | 10W | Ni-Cd 12V 3.0AH | 180mins | 30H | CE |
| 2E3 | AC 220-240v | DC 180-240V | 20W | 20W | Ni-Cd 12V 3.0AH | 90mins | 30H | CE |
| 3E3 | AC 100-240v | DC 180-240V | 30W | 30W | Ni-Cd 11.1V 6.6AH | 120mins | 30H | CE |
| 1E4 | AC 220-240v | DC 180-240V | 40W | 40W | Li-on 11.1V 4.4AH | 60mins | 30H | CE |
| 2E4 | AC 100-240v | DC 180-240V | 50W | 50W | Li-on 11.1V 6.0AH | 60mins | 30H | CE |
| 3E4 | AC 220-240v | DC 180-240V | 20W | 20W | Li-on 11.1V 6.6AH | 180mins | 30H | CE |
