LED 1 X 3W LED
Material Poly Carbonate for conversion body & aluminum LED body
Mouned ceiling mounted
Life time of battery 4 years
Light Output (Emergency) 170lm
Lamp protection over charge and discharge protection
LED indicator Green indicator
Charging current 90mA
Convert voltage 155V AC
Discharging current 500mA
Discharge duration 3 Hours
Spec of battery 3.6V 2200mAh NI-MH Batery
Packing 38.5 x 35x 32.5cm 50pc/ctn
IP Rating IP20

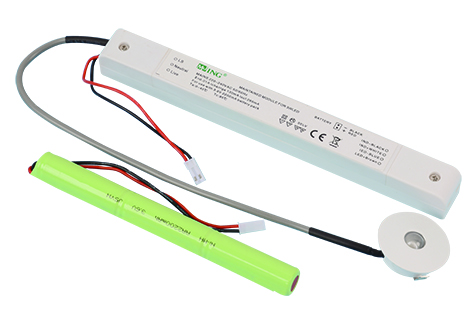

The series use for emergency lighting. The unit will provide 3W maximum output power at emergency mode.They are designed to be highly efficient and highly reliable, and with short-circuit protection; overcharge protection;over discharge protection and over temperature protection.
Important information for the installion:
The unit uses dangerous mains voltage,(220-240Vac, the converter will be with the emergency mode when the mains voltage is less than 65% of rated voltage) it should be installed by ualified electricians only according to European safety standard or relevant nation regulations.
Connect the LED spotlight to the emergency LED converter with correct polarity according to the schematic drawing.
Connect the unit to AC power only after the wiring completed between emergency converter, battery and spotlight.
If the emergency converter is used for purposes other than originally intended or it is connected in the wrong way, no liablility can be taken over for possible damages.
Main power supply
Main power cut off
LED Spotlight off, green indicator on
LED spotlight on, green indicator off
