Normal Mode: AC power is present. The AC driver operates the LED load as designed. The emergency pack
is charging in a standby mode. The test button will be lit, showing that AC power is present.

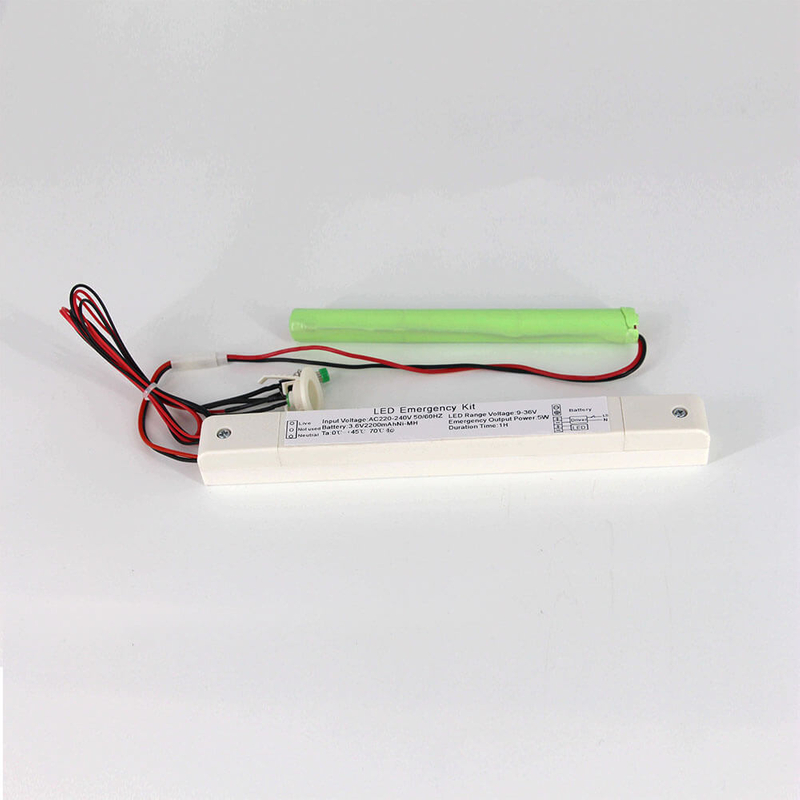

Emergency Mode: In the event of a power failure, the LED emergency driver switches to emergency mode
and operates the Kit LED Module for a minimum of 180 minutes.
Input Voltage (Dual)
| 220-240V, 50-60Hz |
Normal function Indicating LED | Yes |
Emergency Function Testing Device | Yes |
Emergency Time | 3 hrs |
Battery Protection Device | Yes |
Operating Temp | 0 ~ 55 °C |
Start-up Charging Time | 24 hours |
Lumen Factor | PF>0.6 |
Battery | NI-CD/LI-ON |
Type | 3.6/3.7V |
Testing Procedures
Press the test button to cut the power to the AC driver and switch the system to Emergency Mode. Release
the test button to return to Normal Mode. Switch off the circuit breaker to simulate a full power outage. For
Initial Testing, allow the unit to charge approximately one hour, then conduct a short discharge test. Allow a
24 hour charge before conducting a one hour test.
