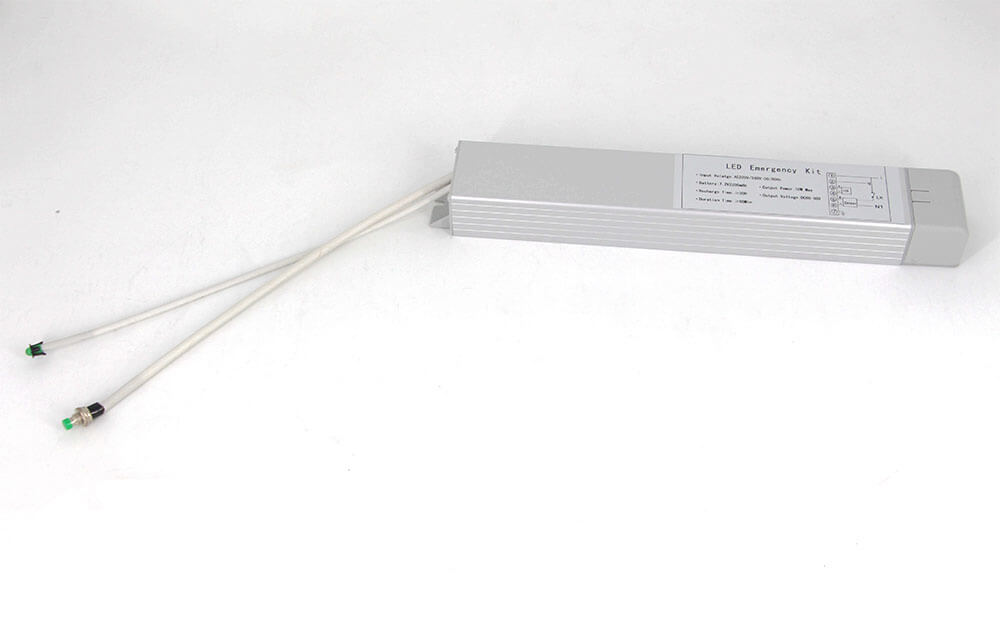

LED/tube/ downlight/panel emergency kit
Intelligent automatic recharging function
Constant current battery charger
1/2/3 hours emergency operation
Led charge status display
Deep discharge protection to protect cells from over discharge
Facility for a Test switch to switch between Emergency and normal lighting function
Supplied with high brightness green/Red LED
Complete with connectors and plug
Push-wire terminal blocks for easy wiring installation
Suitable for LED tube,led downlight,led panel and ect...
1.The battery charging and discharging times:>500 times;
2.Ambient Temperature range ta:0°C~+55°C
3.Max.casing temperature tc:70°C
4.Input voltage :AC 100-240V
5.Lamp: LED Panel 58W
6.Battery: Ni-cd 12v 3.0AH
7.Charging time: 30H
9.EM Time: 3H
10.Output power: 25%
1. Install the unit according to wiring diagram, and improper wiring may lead to permanent damage to the unit;
2. Normal AC mains supply, the inverter allows the battery pack charging, trickle charge to maintain battery performance.
Sudden interruption of the mains AC, then the inverter converts DC battery powered to ensure that lighting and security;
3. Inverter with multiple protection functions: charge protection, discharge protection, short circuit protection;
4. To ensure maximum protection of the built in battery, please fully charge the unit for 24hours after first installation.
To extend battery life please make sure charge the battery at least one time every three months;
5. Don’t install top of the high temperature objects. Please ensure that the operating ambient temperature is below 50C,
and maximum case temperature(tc) not exceeding 70C;
6. Do not operate this unit beyond the operating supply range;
7. In normal use, the battery can be done 700 charge/discharge cycles
8. 5 Years warranty
9. If experience any problem during use, please contact with supplier for help.
