DC 6-80V 30% Emergency of 40W LED EMERGENCY MODULE

External driver
Specially calibrated for full compatibility
Protected against over current/heat
Low profile enclosure
Green LED indicates unit status
Conforms to emergency standard BS EN 61347-2-7
Availability:
Inquire Add to Basket

  • MJ-LED

  • MJING

Technical Details:

 1.The battery charging and discharging times:>500 times;
 2.Ambient Temperature range ta:0°C~+50°C
 3.Max.casing temperature tc:70°C
 4.Test button and green indicator: out 30cm length
 5.DC wire /power supply length: out 30cm


NO. INPUT VOLTAGE LED RANGE VOLTAGE EMERGENCY CONST POWER SUPPLY POWER BATTERY-mAH DURATION TIME REACHARGING TIME CERTIFICATION
1E3 AC 100-240v DC 6-80V 10W 6-100W NI-CD 12V 3.0AH 180mins 30H CE, ROSH
2E3 AC 220-240v DC 6-80V 10W 6-100W NI-CD 12V 3.0AH 180mins 30H CE, ROSH
3E3 AC 110V DC 6-80V 10W 6-100W NI-CD 12V 3.0AH 180mins 30H CE, ROSH
1E4 AC 100-240v DC 6-80V 10W 6-100W NI-CD 12V 3.0AH 180mins 30H CE, ROSH
2E4 AC 220-240v DC 6-80V 10W 6-100W NI-CD 12V 3.0AH 180mins 30H CE, ROSH
3E4 AC 110v DC 6-80V 10W 6-100W NI-CD 12V 3.0AH 180mins 30H CE, ROSH

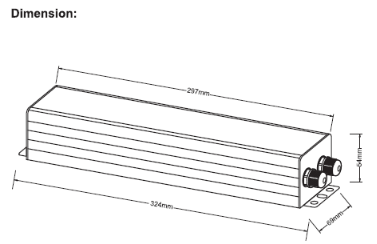

decorative emergency lighting
