Ni-cd 3.6V /Li-on 3.7V Battery Backup LED Emergency Power Supply

1.Long cycle life

2.Excellent discharge performance

3.Long storage period and Good storage characteristics

4.Rapid charge compatible

5.Wide range of temperature :

Common type nickel-cadmium batteries can be used in high or low temperature environment.

High temperature batteries can be 70 degrees or higher temperature environments

6.Reliable safety valve ,providing maintenance-free function
Availability:
  • MJ-LED-10W

  • MJING

Overview

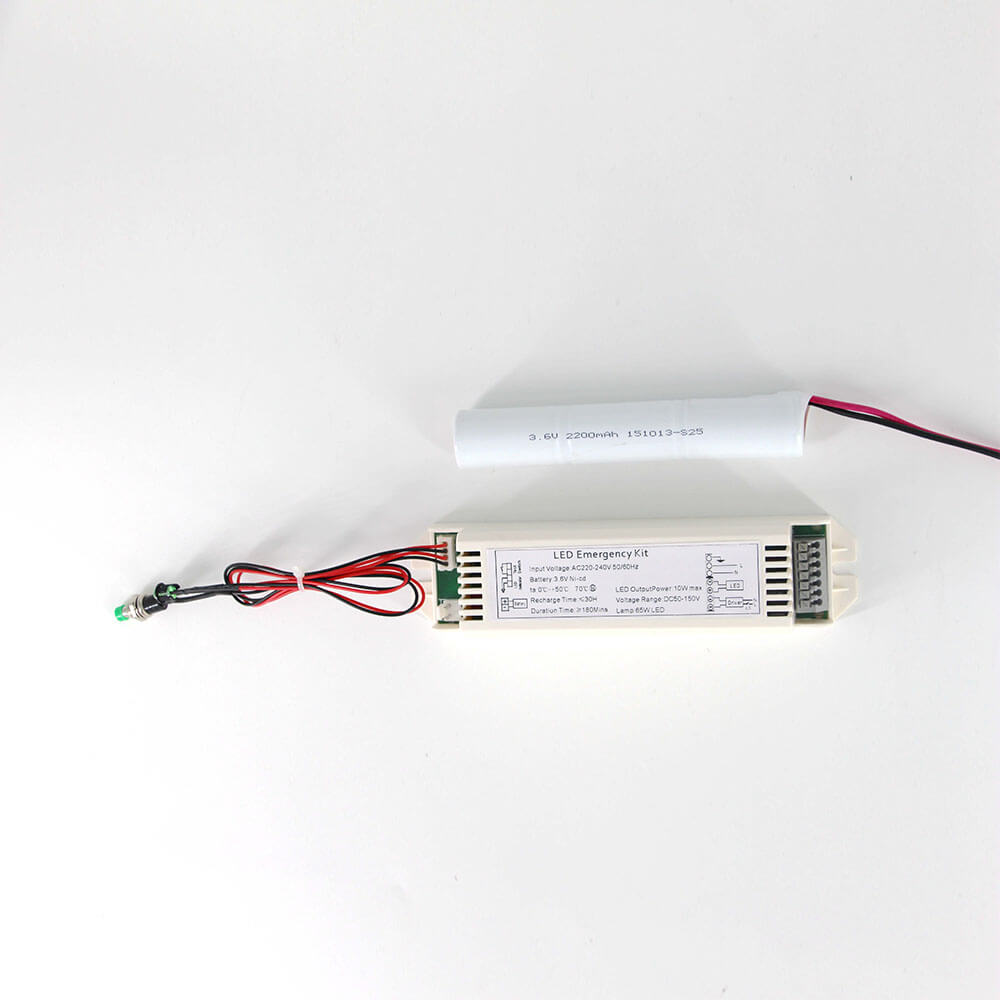

Emergency Power Unit CONVERSION KIT LED  is aimed to provide an uninterrupted interior lighting with LED luminaires in case of unforeseen power switch offs.Unit consists of a driver and a rechargeable Ni-cd battery.Unit is installed inside of the LED luminaireand provides operation of the LED module during an emergency mode for at least 3 hours.Level of illumination is high enough for orientation,evacution from the continuation of the work,which cannot be immediately stopped.LED tri-color indicator showing and testing.The Ni-cd battery performance is connected to LED module.

Production Name


LED Panel emergency battery backup
Part No. MJ-LED-CPAL
Inverter No.
Emergency power10w max
Input Voltage110V-265VAC,50HZ/60HZ
Output Voltage50-200V 3.6V
Output Current self-adaptive
Battery Pack3.6V
 Duration180 Minutes
Charging Time24 hrs
Brightness10%
Inverter housingPC
Emergency conversion time0.1 sec
Inverter weight (no battery)250g
AplicationMAX 80W lamp with input  voltage 220V or 220~310V
Inverter Size305x52x32mm




3. Main Products

    1.     Emergency Lights

    2.     Exit Sign Lights

    3.     Emergency Power Supply



4.Exhibitions & Fairs

  • 2015 Hong Kong International Lighting Fair (Spring Edition)

  • 19th Guangzhou International Lighting Exhibitions

  • 115th Canton Fair 2014 Spring

  • Russian Exhibition 2013 Winter


5.Equipments

  • Intergrating Spheres: to measure brightness(luminous flux)

  • Wave Soldering Machine: to solder PCBs

  • Aging Test Board: to test products performance and select good products

  • Constant Temperature Humidity Chamber: to simulate different environment condition and test products

1. What is the main differences of Fluorescent lamp and LED?

Main differences are power consumption and life span.

For same brightness, the power consumption of fluorescent lamps are 2 to 3 times more than LED lamps.

The life span of LED lamps are 10 times longer than fluorescent lamps.

2. How about the life span of LED Lamps.

Under normal condition, it is about 5000h.

3. Is the company a trading company or a factory?

The company is a factory, and we do export by ourselves.

4. ODM or OEM is acceptable?

Yes, both of them is acceptable.

5. How about the delivery time?

For normal products, the delivery time is 1 month for MOQ.

For  customized products, the delivery time will be different accordingly.

6.What can be customized?

Battery

Package

Emergency time. Other requirements from cutomers. Of course, the engineers will evaluate first.
